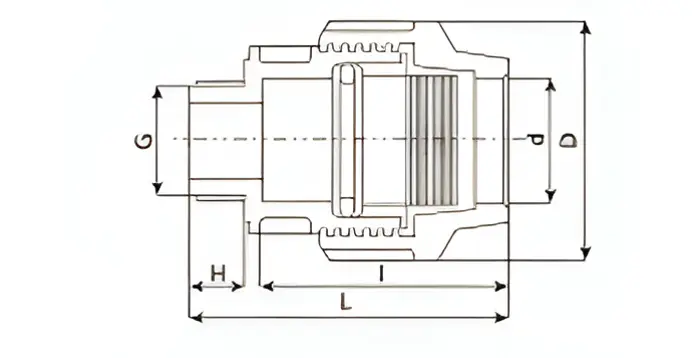

Polyprpylene Compression Male Threaded Adaptor
Polyprpylene Compression Male Threaded Adaptor are made from the raw material and are available in size from 20mm o.d. x 1\2 n.b. to110mm o.d. x 4 n.b. Male Threaded. this fittings is designed to connect a lengths of Polyprpylene (PE) pipe to a BSP famale Threaded which can be done assembly and installation take place without need of any adhesives or welding material.
| CODE NO | SIZE | PCS/CTN | PCS WEIGHT-KGM | Carton Size |
|---|---|---|---|---|
| 5004020 | 20 x 1/2 | 360 | 0.051 | 50x34x28 |
| 5004024 | 25 x 1/2 | 220 | 0.610 | 50x34x28 |
| 5004025 | 25 x 3/4 | 220 | 0.069 | 50x34x28 |
| 5004031 | 32 x 3/4 | 160 | 0.094 | 50x34x28 |
| 5004032 | 32 x 1 | 160 | 0.100 | 50x34x28 |
| 5004040 | 40 x 1-1/4 | 160 | 0.097 | 50x34x28 |
| 5004050 | 50 x 1-1/2 | 60 | 0.271 | 50x34x28 |
| 5004063 | 63 x 2 | 36 | 0.473 | 50x34x28 |
| 5004074 | 75 x 2 | 30 | 0.510 | 50x34x28 |
| 5004075 | 75 x 2-1/2 | 30 | 0.535 | 50x34x28 |
| 5004089 | 90 x 2 | 13 | 0.018 | 50x34x28 |
| 5004090 | 90 x 3 | 13 | 1.023 | 50x34x28 |
| 5004109 | 110 x 3 | 8 | 2.350 | 50x34x28 |
| 5004110 | 110 x 4 | 8 | 2.378 | 50x34x28 |
